Mimosa Gigabit Network Interface Device (NID)
Sleek, Affordable Network Interface With ESD and Grounding
Mimosa Wireless Products
Mimosa Accessories
Mimosa Gigabit Network Interface, ESD Protection and Grounding Point (P/N 100-00039)
Required for C5 Installation. Outdoor Technician Access
Required for C5 Installation. Outdoor Technician Access
#NID
Our Price: $15.00
Our Price: $15.00

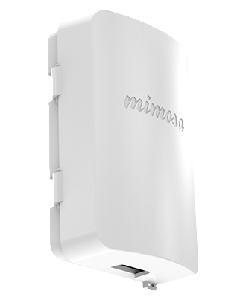

The sleek and affordable Mimosa Gigabit Network Interface Device (NID) is designed for exterior wall mounting, providing outdoor technician access, ESD protection and grounding point for C5 and C5c installation. The dust and water resistant design has a foam cable entry seal and a security fastener tie point.
| Mimosa Gigabit Network Interface Device Specifications | |
|---|---|
| Data Transfer Rate | Gigabit rated |
| Connectors | Two (2) RJ-45 |
| Protection Mode | Line-to-line and line-to-ground |
| Surge Arrestor | GTD (Gas Discharge Tube) |
| Nominal Voltage | 20V @ 1A |
| DC Sparkover | 90V @ 100V/s |
| Impulse Sparkover | 550V @ 1000V/µs |
| Impulse Discharge Current | 10kA |
| Capacitance | < 1.0pF @ 1 MHz |

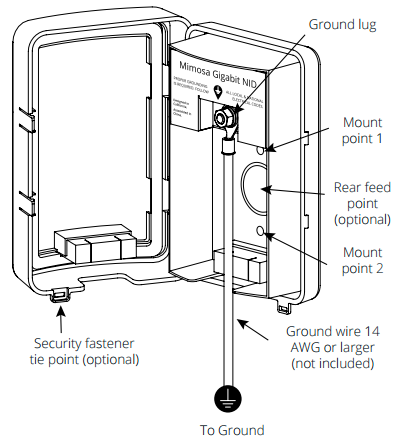

| Mounting | Wall mount. Two screw mounting points for secure access to flat surface with optional rear feed point for clean installations. |
| Dimensions | 42 mm (1.6”) x 131 mm (5.1”) x 84 mm (3.3”) |
| Weight | 0.13 kg (4.8 oz) |
| Operating Temperature | -40 to +55 C |
| Humidity | 5 to 100% condensing |
| Environmental Protection | IP54 (Dust and Water Intrusion Protection) |
Download the Mimosa Accessories Datasheet (.PDF)
